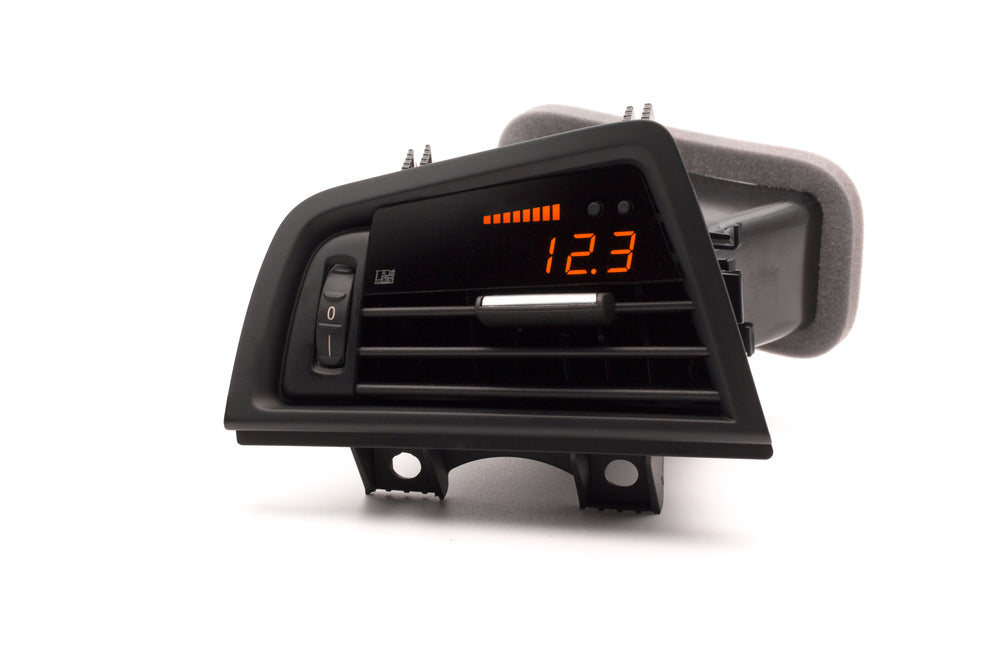

P3 Analog Gauge - BMW F1X (2011-2017)
P3 Analog Gauge - BMW F1X (2011-2017)
P3 Analog Gauge - BMW F1X (2011-2017)
  • Load image into Gallery viewer, P3 Analog Gauge - BMW F1X (2011-2017)
  • Load image into Gallery viewer, P3 Analog Gauge - BMW F1X (2011-2017)
  • Load image into Gallery viewer, P3 Analog Gauge - BMW F1X (2011-2017)

P3 Analog Gauge - BMW F1X (2011-2017)

Regular price
£259.00
Sale price
£259.00
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

4 Available Analog Readouts

  • Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
  • Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
  • Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
  • Battery voltage (red wire / black wire - read through power and ground wires)
  • optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

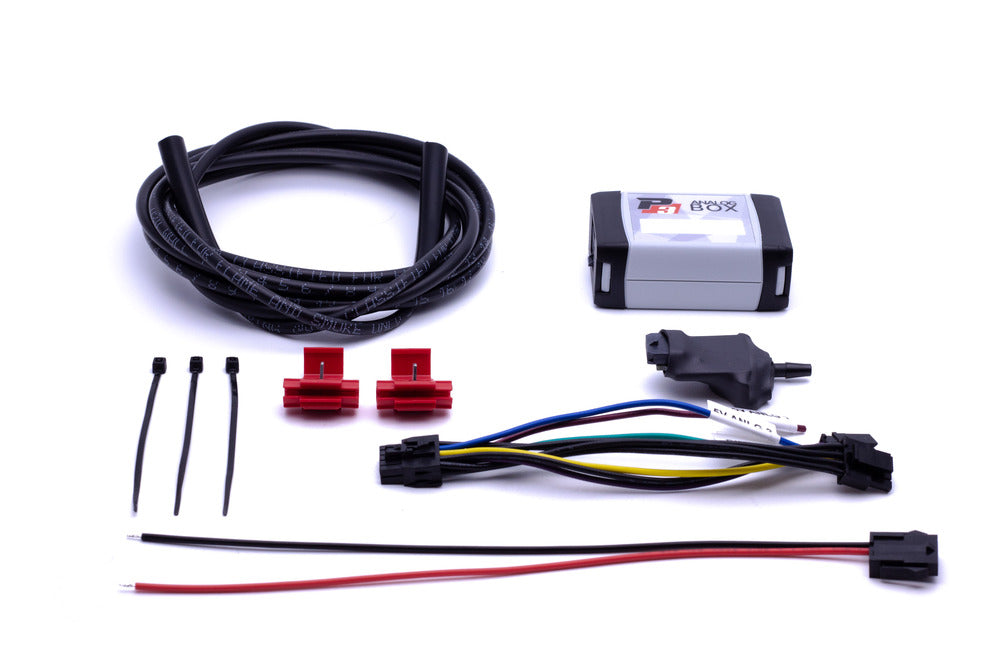

Analog gauge base kit includes

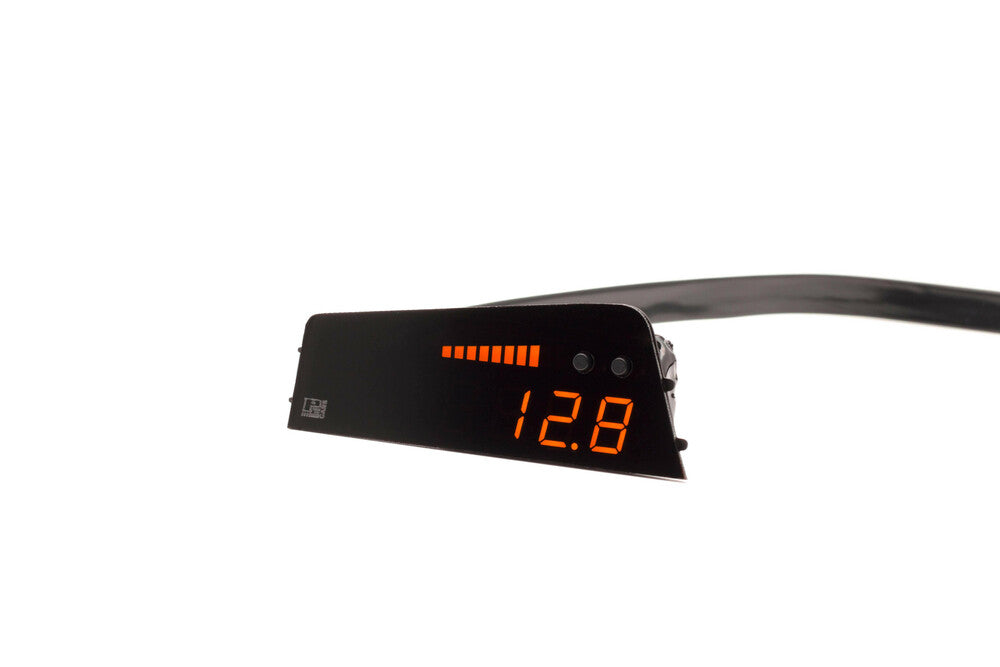

  • Integrated display
  • Analog Box control unit
  • Main harness
  • Hard-wire harness
  • Analog boost sensor *boost tap not included
  • Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
  • 3 zip ties
  • 2 scotchlok wire taps
