Direct fit and no need for wiring loom extension to fit B58 Gen 1

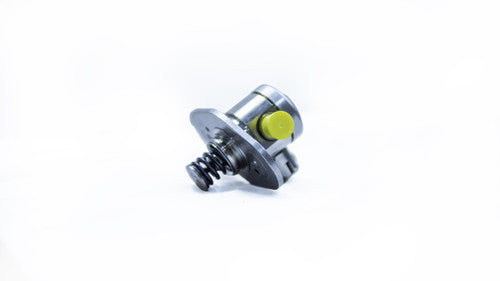

The Bosch 0261520520R high pressure fuel pump (HPFP) is a high-performance version of standard HPFP fitted to the popular BMW B series engines manufactured from 2015 to 2019. This engine is fitted to a range of BMW and Toyota applications.
For any compatibility questions please see below the applications table.
The BOSCH 0261520520R HPFP upgrade has been specifically designed to achieve maximum performance while still retaining OEM durability and service life. The benefits are:
Strengthened internal valves and components to enable a continuous 350bar maximum rail pressure throughout the engine speed range Ÿ?? an increase of 75% compared to the standard HPFP.
Increased plunger diameter by 10%, resulting in 10% more fuel volume per pumping event.
Reduced clearance between the plunger and plunger bore to increase pumping efficiency and unwanted heat.
The BOSCH 0261520520R HPFP is supplied to be a direct replacement and requires no additional modifications to the engine wiring loom and hydraulic connections. This HPFP upgrade is a must for owners trying to achieve power levels beyond a typical stage 1 tune where fuel pressure/flow can no longer be maintained due to the increased fuel rates required. The high-performance PFP0261520520R HPFP will fit the following vehicles listed below:
Vehicle Model Years Power (BHP) Engine Size (cc)
1 Sports Hatch (F20) M 140 i 07.2016 Ÿ?? 06.2019 340 2998
1 Sports Hatch (F20) M 140 i xDrive 07.2016 Ÿ?? 06.2019 340 2998
1 Sports Hatch (F21) M 140 i 10.2015 Ÿ?? 05.2019 340 2998
1 Sports Hatch (F21) M 140 i xDrive 09.2015 Ÿ?? 05.2019 340 2998
2 Convertible (F23) M 240 i 09.2015 Ÿ?? 340 2998
2 Convertible (F23) M 240 i xDrive 09.2015 Ÿ?? 340 2998
2 Coupe (F22, F87) M 240 i 09.2015 Ÿ?? 340 2998
2 Coupe (F22, F87) M 240 i xDrive 09.2015 Ÿ?? 6.2021 340 2998
3 (F30, F80) 340 i 07.2015 Ÿ?? 10.2018 360 2998
3 (F30, F80) 340 i 07.2015 Ÿ?? 10.2018 326 2998
3 (F30, F80) 340 i xDrive 07.2015 Ÿ?? 10.2018 360 2998
3 (F30, F80) 340 i xDrive 07.2015 Ÿ?? 10.2018 326 2998
3 Gran Turismo (F34) 340 i 07.2016 Ÿ?? 4.2021 360 2998
3 Gran Turismo (F34) 340 i 07.2016 Ÿ?? 4.2021 326 2998
3 Gran Turismo (F34) 340 i xDrive 07.2016 Ÿ?? 4.2021 360 2998
3 Gran Turismo (F34) 340 i xDrive 07.2016 Ÿ?? 4.2021 326 2998
3 Touring (F31) 340 i 07.2015 Ÿ?? 06.2019 360 2998
3 Touring (F31) 340 i 07.2015 Ÿ?? 06.2019 326 2998
3 Touring (F31) 340 i xDrive 07.2015 Ÿ?? 06.2019 360 2998
3 Touring (F31) 340 i xDrive 07.2015 Ÿ?? 06.2019 326 2998
4 Convertible (F33, F83) 440 i 03.2016 Ÿ?? 360 2998
4 Convertible (F33, F83) 440 i 03.2016 Ÿ?? 7.2020 326 2998
4 Convertible (F33, F83) 440 i xDrive 03.2016 Ÿ?? 7.2020 360 2998
4 Convertible (F33, F83) 440 i xDrive 03.2016 Ÿ?? 7.2020 326 2998
4 Coupe (F32, F82) 440 i 03.2016 Ÿ?? 6.2020 360 2998
4 Coupe (F32, F82) 440 i 03.2016 Ÿ?? 6.2020 326 2998
4 Coupe (F32, F82) 440 i xDrive 03.2016 Ÿ?? 6.2020 360 2998
4 Coupe (F32, F82) 440 i xDrive 03.2016 Ÿ?? 6.2020 326 2998
4 Gran Coupe (F36) 440 i 03.2016 Ÿ?? 4.2021 360 2998
4 Gran Coupe (F36) 440 i 03.2016 Ÿ?? 4.2021 326 2998
4 Gran Coupe (F36) 440 i xDrive 03.2016 Ÿ?? 4.2021 360 2998
4 Gran Coupe (F36) 440 i xDrive 03.2016 Ÿ?? 4.2021 326 2998
5 (G30, F90) 540 i 09.2016 Ÿ?? 06.2020 360 2998
5 (G30, F90) 540 i 09.2016 Ÿ?? 06.2020 340 2998
5 (G30, F90) 540 i xDrive 09.2016 Ÿ?? 06.2020 360 2998
5 (G30, F90) 540 i xDrive 09.2016 Ÿ?? 06.2020 340 2998
5 Touring (G31) 540 i xDrive 03.2017 Ÿ?? 06.2020 360 2998
5 Touring (G31) 540 i xDrive 03.2017 Ÿ?? 06.2020 340 2998
6 Gran Turismo (G32) 640 i 06.2017 Ÿ?? 06.2020 360 2998
6 Gran Turismo (G32) 640 i 06.2017 Ÿ?? 06.2020 340 2998
6 Gran Turismo (G32) 640 i xDrive 06.2017 Ÿ?? 06.2020 360 2998
6 Gran Turismo (G32) 640 i xDrive 06.2017 Ÿ?? 06.2020 340 2998
X3 (G01, F97) xDrive M40 i 08.2017 Ÿ?? 360 2998
X3 (G01, F97) xDrive M40 i 09.2018 Ÿ?? 08.2019 354 2998
X4 (G02, F98) M40 i xDrive 04.2018 Ÿ?? 360 2998
X4 (G02, F98) M40 i xDrive 04.2018 Ÿ?? 08.2019 354 2998
Kit part numbers:
MMR Panel Filter - MMR01-0502
Nforcd De-Cat - PM-PERFMB58DC
Nforcd Sports Cat - PM-PERFMB58SC
